AB Sierra Fieldstone

AB Sierra Fieldstone

Introducing the first Eco-Friendly mortarless concrete retaining wall system - the AB Fieldstone Collection®. Using recycled materials has allowed Allan Block to create a "green" retaining wall system that is safe for the environment and is able to use post consumer materials without taking away from the quality of the blocks. Every AB Fieldstone facing unit is cast to emulate the look and feel of natural stone.

AB Fieldstone is an innovative new concept in the manufacture and use of segmental retaining wall (SRW) systems. By manufacturing this system in 2 pieces - the facing unit and the anchoring unit, Allan Block has opened the door to many benefits that are not only Green, but Natural and Friendly as well.

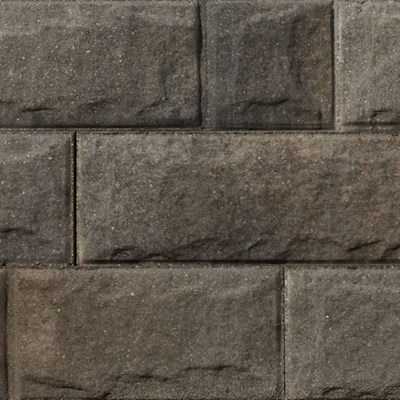

AB Fieldstone is GREEN. Every block is made with locally recycled material in the back of the block. AB Fieldstone is NATURAL. Every AB Fieldstone facing unit is cast to emulate the look and feel of natural stone. Choose the look you want from our Series of styles. The blocks are made in two pieces making them lightweight and easy to handle.

Note: It is always advised to view a physical sample ahead of making a final selection.

Why Choose AB Fieldstone

  • Has the look and feel of natural stone
  • Easier to install than natural stone
  • Fraction of the cost of natural stone
  • The two-piece system is lighter in weight than natural stone
  • Build taller walls without geogrid
  • Built-in corner blocks
  • Facing units can be rotated for additional looks and styles
  • Retaining walls and parapet walls all with one product line
  • Every block the exact same height
  • Environmentally friendly product
  • Series faces can be blended together for more unique styles

Allen Block Project Resources

Block Estimating Tool
Allan Block CAD Design Details

Specifications



    812 Sierra Facing Unit with SAU
    SAU - Short Anchoring Unit
    8 in. H x 13 in. D x 12 in. L
    200mm H x 330mm D x 300mm L
    812 Sierra Facing Unit with LAU
    LAU - Long Anchoring Unit
    8 in. H x 23 in. D x 12 in. L
    200mm x 585mm x 300mm
    824 Sierra Facing Unit with SAU
    SAU - Short Anchoring Unit
    8 in. H x 13 in. D x 24 in. L
    200mm H x 330mm D x 600mm L
    824 Sierra Facing Unit with LAU
    LAU - Long Anchoring Unit
    8 in. H x 23 in. D x 24 in. L
    200mm H x 585mm D x 600mm L
    AB Fieldstone Sierra Cap
    3.5 in. H x 11.5 in. D x 17.5 and 14.5 in. L
    90mm H x 300mm D x 450 and 350mm L
    AB Fieldstone Sierra Parapet Cap
    3.5 in. H x 18 in. D x 24 in. L
    90mm H x 460mm D x 600mm L
    AB Dogbone Unit
    4 in. H x 7 in. D x 2.5 in. L
    100mm H x 175mm D x 60mm L

    Note: Structural retaining walls greater than 2' high require professional engineering.

Based on manufacturer assigned sales territories, product availability may vary by location.
