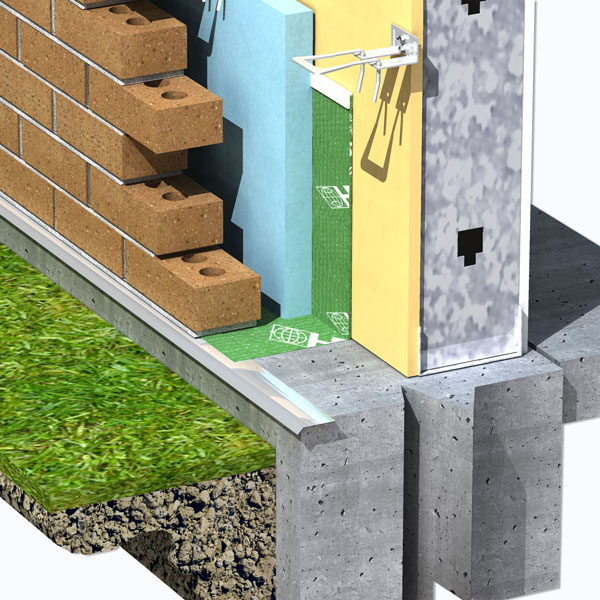

Drip Plates (Drip Edge)

• DP

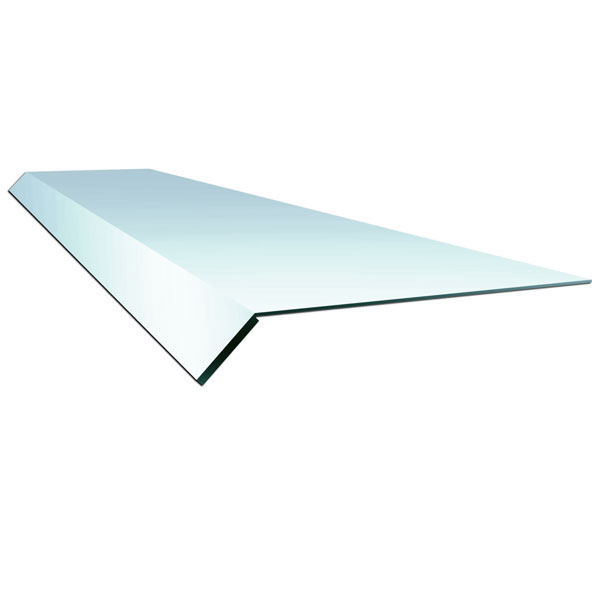

  • Our Standard Drip Plate, furnished with a smooth, factory-formed hemmed edge for installation safety and uniform appearance.
  • Standard DP Drip Plates are compatible with all H&B flashing products.
  • DP-LB
    • Same as above, for lip brick conditions.


• FTS
  • Optional Foam-Tite Seal™ offers unique added protection against the ingress of water in cavity wall construction.
  • It is a continuous 1/8” strip of factory-installed compressible foam to act as a bond-break and help prevent air and moisture infiltration.
  • FTS-LB
    • Same as above, for lip brick conditions.


• FTSA
  • Adds our optional Flash-Adhere™ Adhesive Strip to the FTS Drip Plate (as described above). This adhesive strip (with tear-off release paper) is factory-installed on the top side of the drip plate to aid in the precise and permanent placement of the flashing.
  • FTSA-LB
    • Same as above, for lip brick conditions.


• Drip Plate Corners
  • Drip Plate Inside and Outside Corners are pre-formed pieces with a smooth, uninterrupted, hemmed drip edge to maintain the integrity of the flashing system.
  • Available with Foam-Tite Seal™ and /or Flash-Adhere™ Adhesive strip.
  • For corner pieces, reference “inside” or “outside” with above product numbers.

DIMENSIONS/GAUGES:

• Available 1-1/2” or 3” wide (other widths available on request).

AVAILABLE FINISHES:

• Fabricated from Type 304 or Type 316 Stainless Steel.
• Also available in copper and lead-coated copper.

NOTE:

• U.S. Pat. No. 6,584,746 Other Patents Pending
• H&B sources Stainless Steel from a wide variety of vendors. Per the International Stainless SteelForum, Stainless Steel objects have an average of 60% recycled content.
• Foam-Tite™ Seal and Flash-Adhere™ Adhesive Strip are compatible with ALL types of flashing.
• H&B does NOT recommend the use of galvanized sheet as a drip plate/edge.

*When cleaning the exterior veneer, the cleaner’s manufacturer recommendations for protecting metal must be followed.
