Belair Wall® 2.0

Brand Belgard
Material Concrete Wall Stone
Colors Earth Tones, Greys
Type Wall

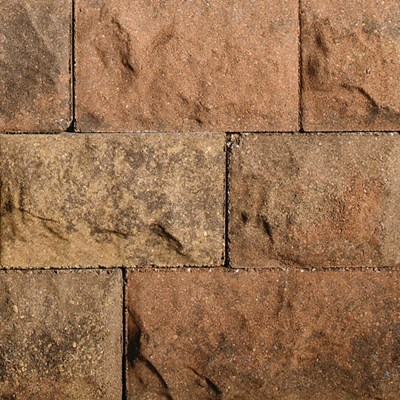

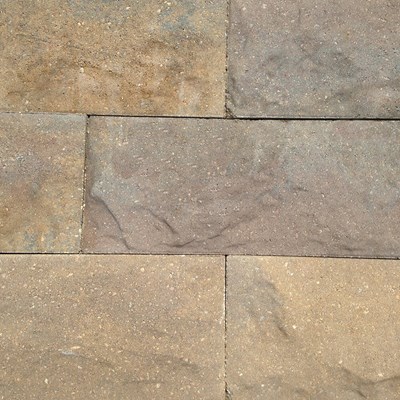

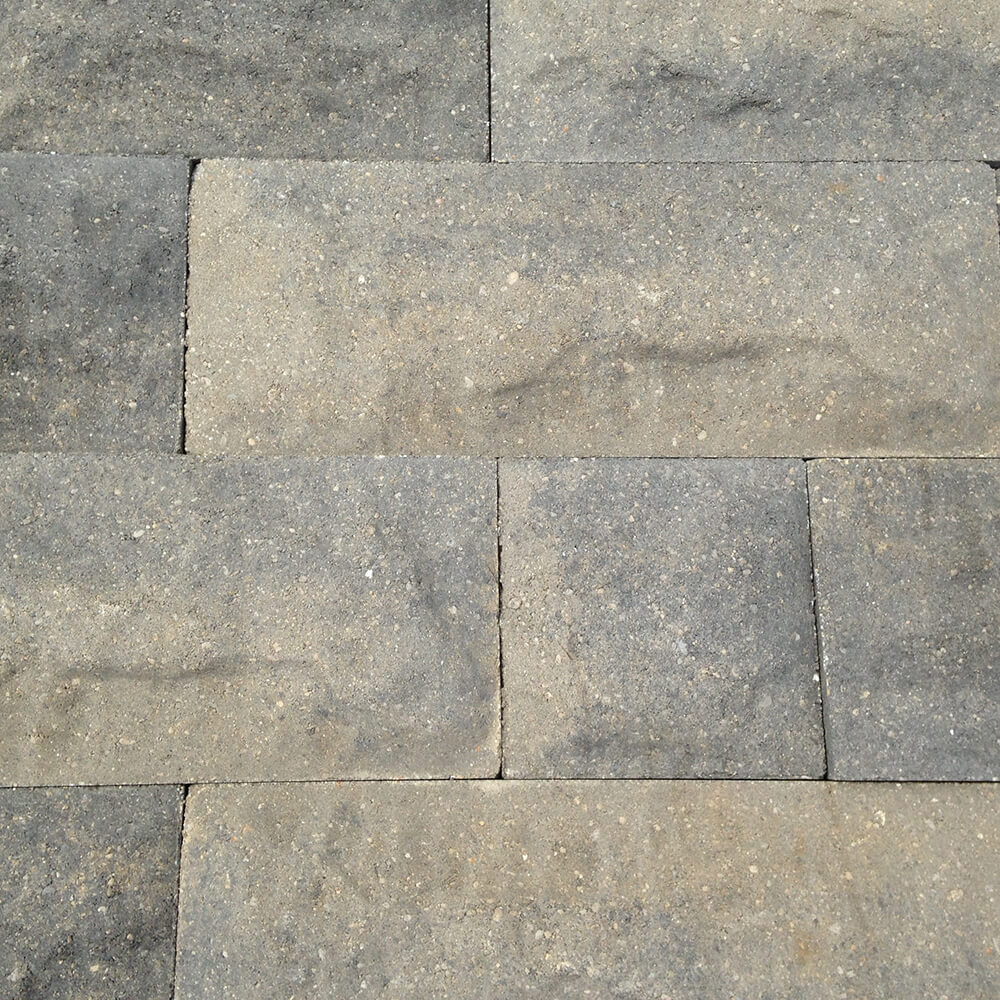

Color Options

Belair Wall® 2.0

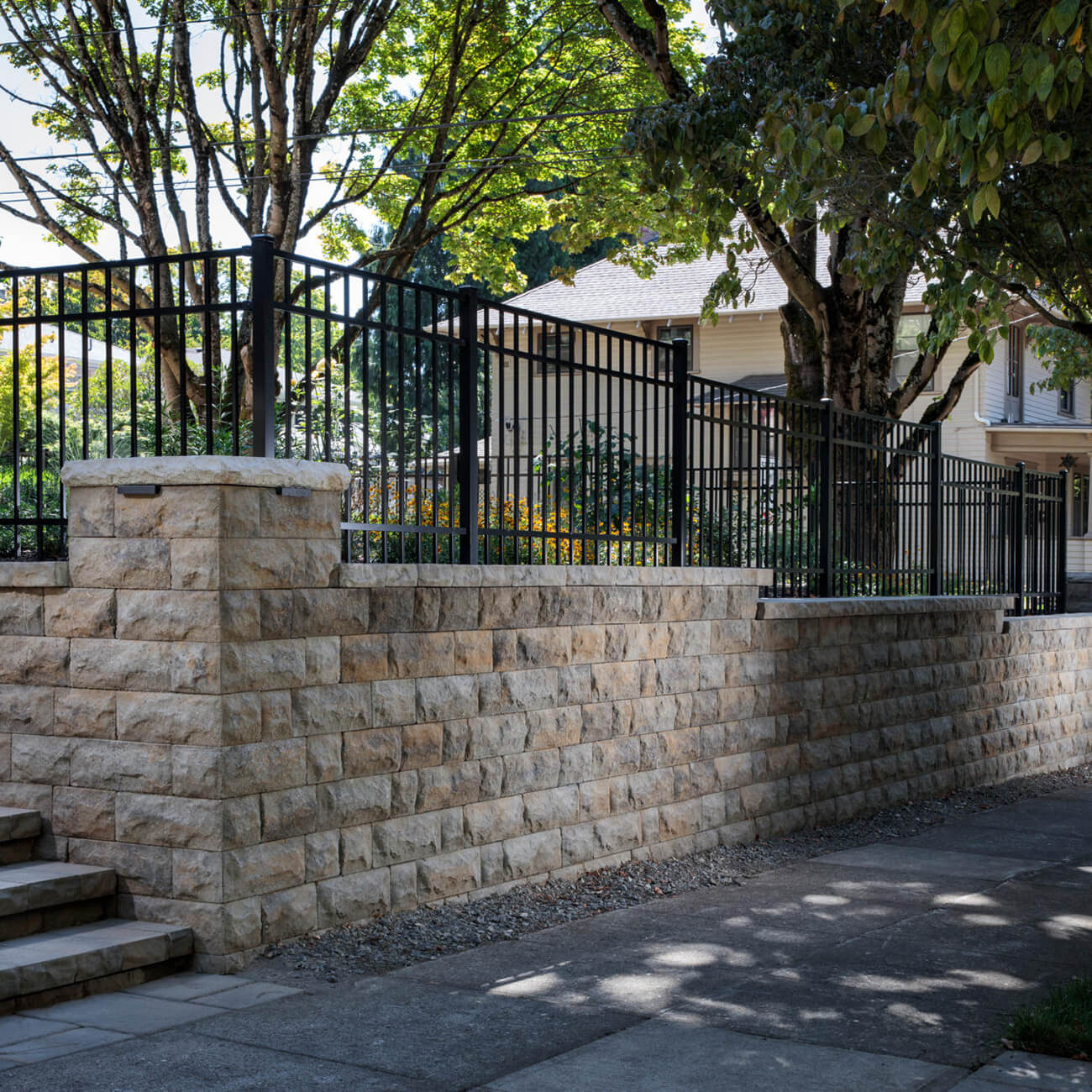

Belair Wall® 2.0 is ideal for retaining and freestanding wall construction where aesthetics are a key consideration. The attractive multi-piece design and blended colors offer an alternative look to traditional retaining wall blocks. Belair Wall 2.0 can be used in curves and corners, terraces and raised patios, or steps and columns.

*All colors and/or products may not be available in all areas. Please inquire for availability and special order options.

Specifications

Features & Benefits

• Freestanding walls can be built up to 3 feet high, including buried course, but excluding the cap

• Gravity walls can be built up to 3 feet high, including buried course, but excluding the cap*

• Taller walls can be built using geosynthetic reinforcement when designed by a qualified engineer

• Rear-lip on retaining wall block makes installation fast and accurate

• Freestanding Walls: Minimum radius using all three units: 4 feet

• Retaining Walls: Setback/System batter: 1”/9.5º

• Minimum outside radius, measured on the top course to the front of the units: 4 feet

• Minimum inside radius, measured on the base course to the front of the units: 8 feet



Dimensions

Sold Individually

Freestanding Wall
Freestanding Wall
Freestanding Wall
6 x 6 x 5
6 x 10 x 5
6 x 16 x 5



Trapezoid double-sided cap
Retaining Wall
Retaining Wall
3 x 7/8 x 13 1/2
6 x 6 x 8
6 x 10 x 8



Retaining Wall
Wall End Unit
Column/Corner
6 x 16 x 8
6 x 8 x 11
6 x 16 x 8




Cap End Unit - 3 sided
U-Start Base Block®
3 x 8 x 13 1/2
3 1/2 x 18 7/16 x 12

Details & Installation Guides
Important Information

IMPORTANT INFORMATION

Note: Structural retaining walls greater than 2' high require professional engineering.

Based on manufacturer assigned sales territories, product availability may vary by location.
