Diamond® 9D

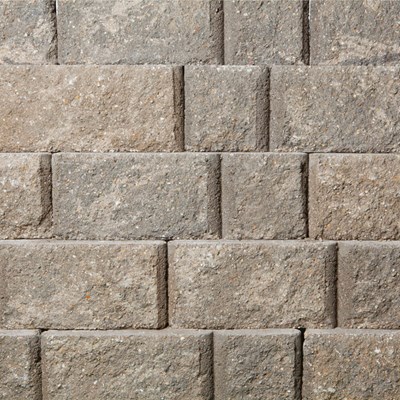

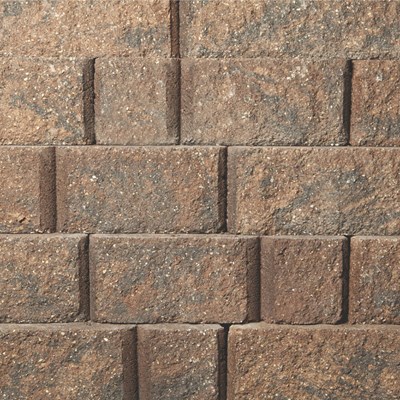

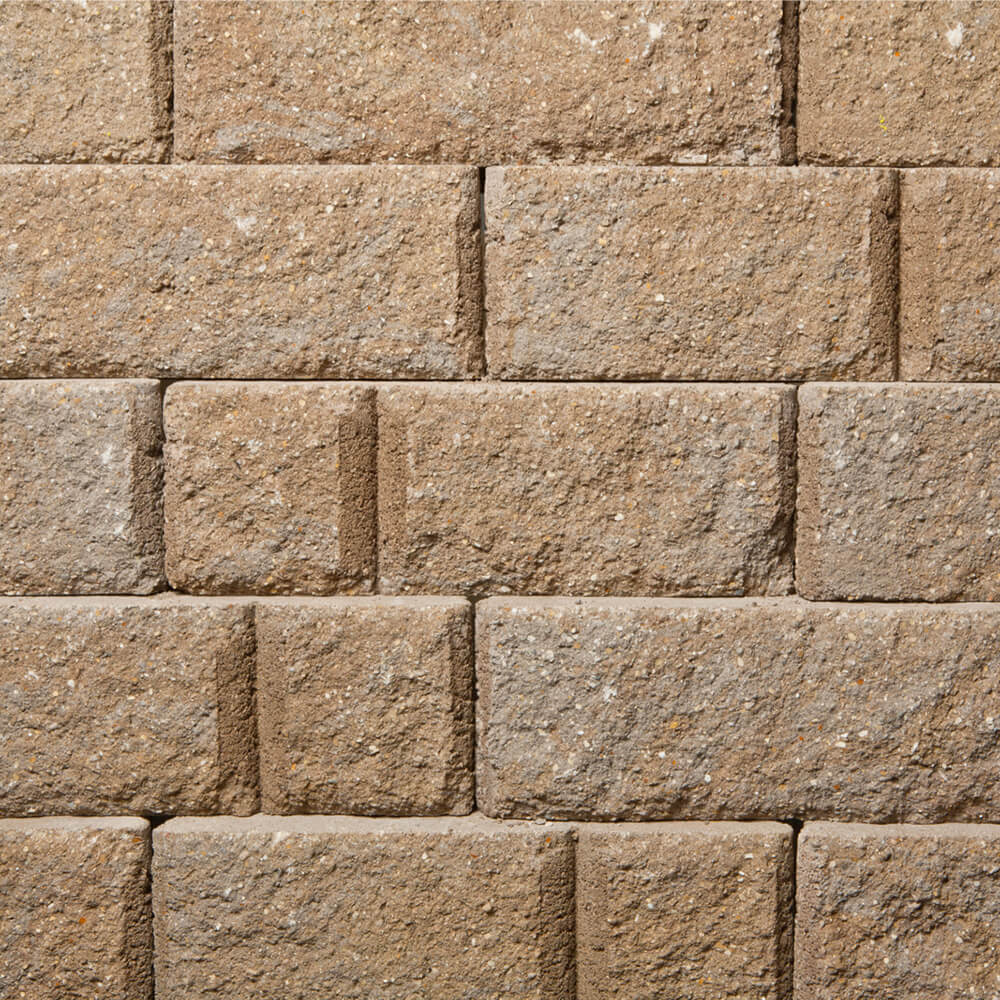

Color Options

Diamond^® 9D

The dependability of Diamond^® retaining wall systems has made them the preferred choice for decades. The Diamond^® 9D retaining wall system has the advantages of a lighter weight and softened contours.

_{*All colors and/or products may not be available in all areas. Please inquire for availability and special order options.}

Specifications

• Dimensions
• Details & Installation Guides
• Important Information

Dimensions



Diamond 9D Unit	Diamond 9D with Virtual Joint	Step Unit
6 x 17 3/4 x 9	6 x 17 3/4 x 9	6 x 16 x 12
	Available in Right & Left



Universal Cap	U Start Base Block
3 x 18/12 x 13	3 1/2 x 18 7/16 x 12
	U Start Base Block actual coverage length is 16 11/16"



Details & Installation Guides

GEOSYNTHETIC ESTIMATING CHARTS | DIAMOND 9D WALL

MATERIAL ESTIMATING CHARTS | DIAMOND SERIES WALLS

MATERIAL ESTIMATING CHARTS | BASE COURSE FOR WALLS

Important Information

IMPORTANT INFORMATION

Note: Structural retaining walls greater than 2' high require professional engineering.
